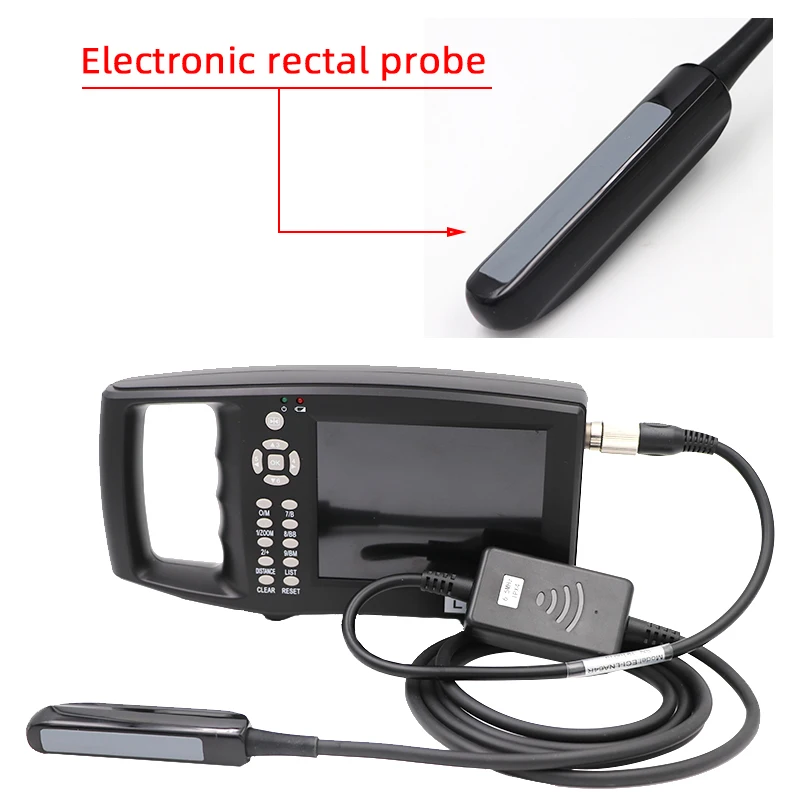

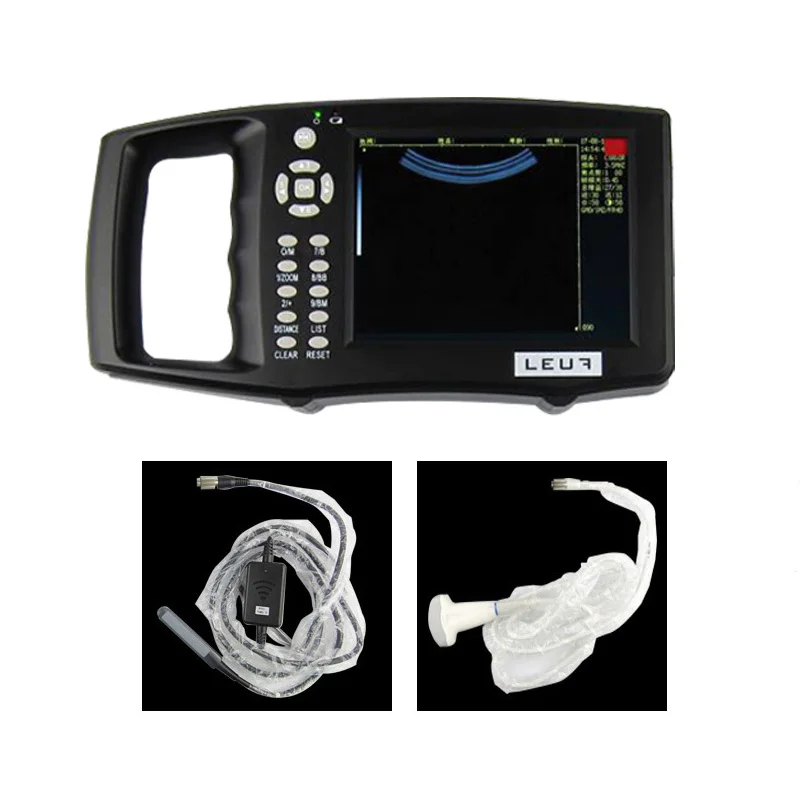

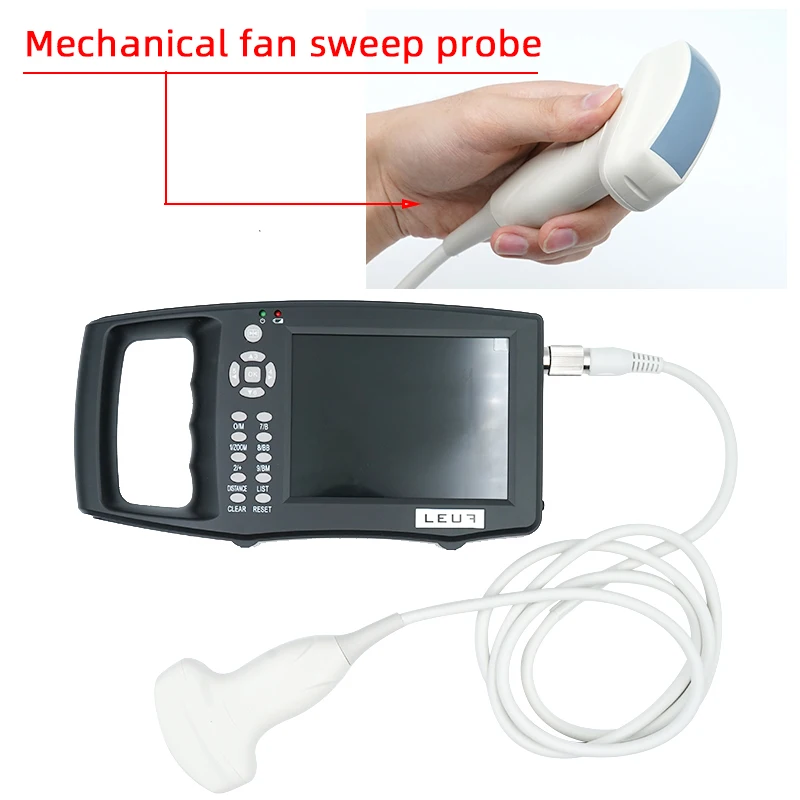

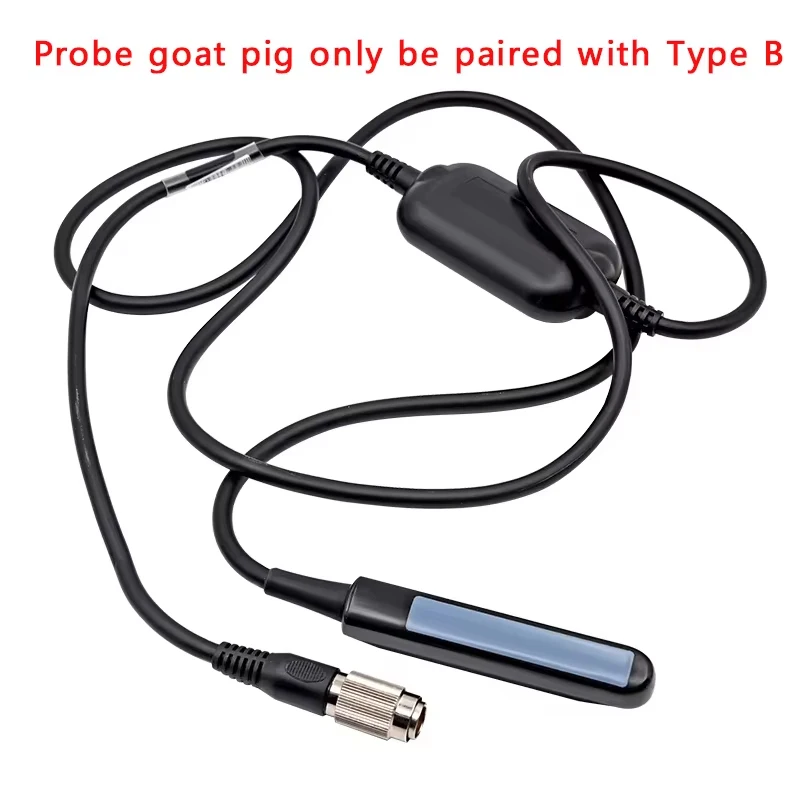

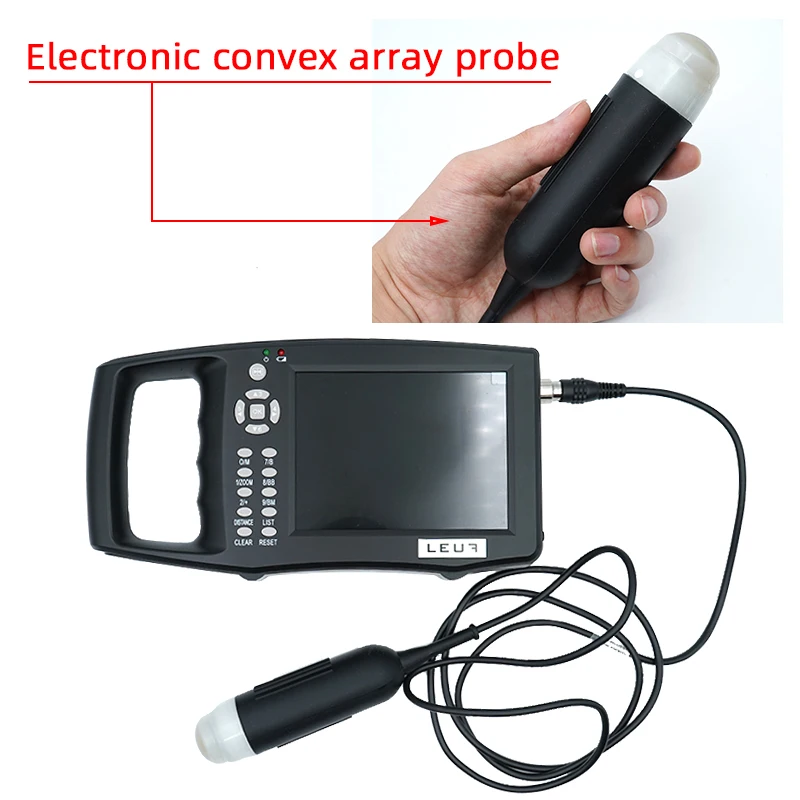

1. This machine can be equipped with two types of probes,one is CXA50R/3.5MHz Convex Probe suitable for pig sheep . The other one is LNA64/6.5MHz Linear rectal probe suitable for cattle horse camel.

2. Excellent control of body weight, the total weight (including battery) no more than 900g, more portable handheld work;

3. Good shell reinforcement design ,the products can adapt to the farm and wild and rugged working environment;

4. Excellent display technology, which can adapt to both the weak light and bright light image display performance.

Product advantages

NOTE

-1. Buy 1 set veterinary ultrasound machine, our store will give 10 pcs long arm veterinary gloves

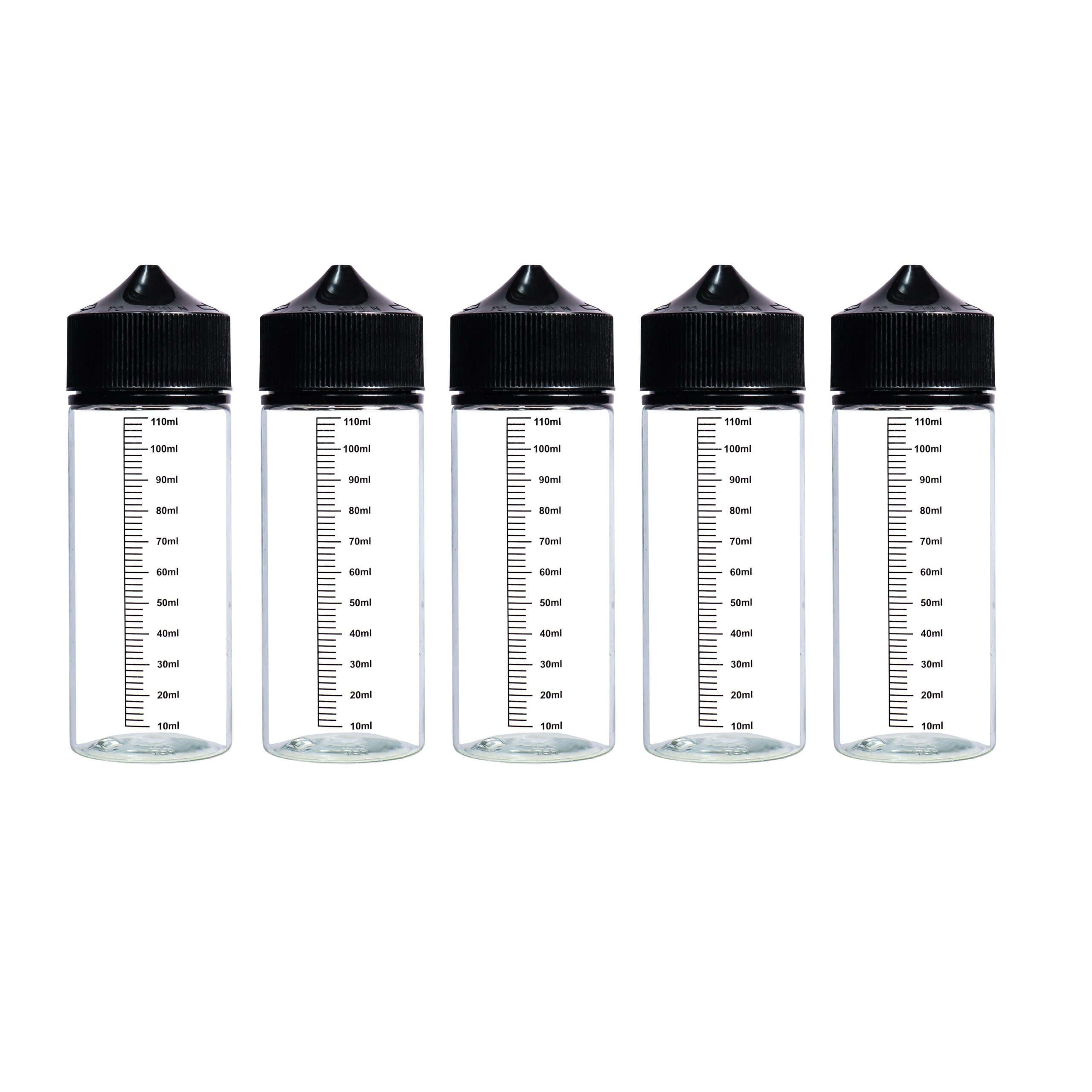

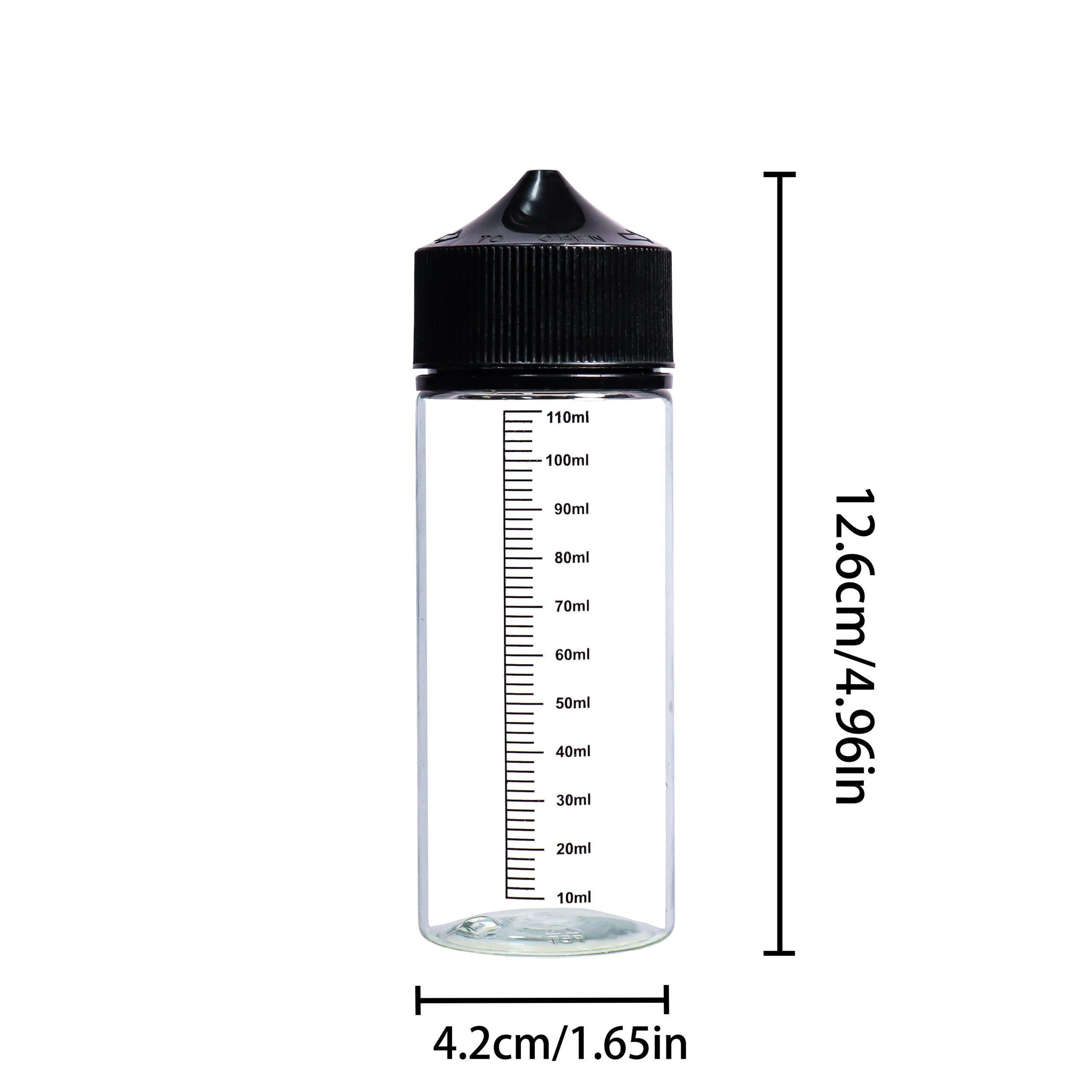

-2. Since the goods ship from China to foreign countries cannot contain liquids, so we will empty the couplant in the white bottle before delivery. After receiving the goods, customers can use soybean oil or castor oil, olive oil or Kitchen detergentinstead of the couplant.

Technical Parameters

NO.	Parameters	Index
1	Probe parameters	64 array elements, 32 channels
2	display	Smartphone or tablet series
3	scanning method	80° sector scan
4	Probe	3.5MHz transducer
5	Scan depth	200 mm
6	Display mode	B mode
7	Gray level	256 levels
8	Battery duration	> 3 hours
9	size	140mm x 45mm x 40mm
10	weight	< 0.2 Kg

ProductFeatures

-1. For tablets or smartphones.

-2. Built-in lithium battery, continuous operation for more than 3 hours.

-3. High resolution, advanced digital imaging technology, clear images.

-4. High cost performance.

-5. Wireless connection, easy to operate.

-6. Small size, light weight, easy to carry, commonly known as pocket ultrasound machine.

-7. Suitable for emergency, clinic, outdoor and veterinary inspections, check for large dog, pig, and sheep pregnancy tests.

-8. Intelligent terminal platform, powerful application, storage, communication, print extension function.

-9. Additional detection of uterine inflammation, uterine fluid, follicular development and other diseases.

Standard Configuration

– 1. Host (probe) 1set;

– 2. USB charging cable 1 pcs;

– 3. Host anti-fall lanyard 1 pcs;

-4. Product manual 1pcs.

Probe cleaning method:

-The probe needs to be cleaned after each probe is used.

-The front end of the probe can be washed directly with water or with a damp cloth/paper towel. The probe is IPX5 waterproof and can be rinsed with clean water for a short period of time, but do not immerse the probe directly in water.
