Description

SPECIFICATIONS

After Warranty Service 1: Video technical support;Online support;Spare parts

After Warranty Service 2: Field maintenance and repair service

After-sales Service Provided 1: Field installation, commissioning and training

After-sales Service Provided 2: Field maintenance and repair service

BOUNDARY DIMENSION(L*W*H): 7.8*2.3*2.7 m

Brand Name: NoEnName_Null,yugong

Certification: CE,CE, ISO9001

Clamping Force (kN): 5080

Condition: New,New

Distance between Tie Bars: 805×715 mm

Distance between Tie Bars(Height)(mm): 715mm

Distance between Tie Bars(Width)(mm): 805mm

Ejector Force(kN): 152 kN

Ejector Number: 12+1

Ejector Stroke(mm): 225 mm

Hign-concerned Chemical: None

Injection Rate (g/s): 545.82 g/s

Injection Weight (g): 2018 g

Key Selling Points: High Productivity

Local Service Location 1: Egypt;Turkey;Peru;Indonesia;Indonesia

Local Service Location 2: Mexico;Russia;Argentina;South Korea

Local Service Location 3: Colombia;Algeria;Bangladesh;South Africa

Machine Type: Hydraulic

Machinery Test Report: Provided

Marketing Type: New Product 2020

Mold Height(mm): 290 – 800 mm

Open Stroke(mm): 775 mm

Origin: Mainland China

Place of Origin: Henan, China

Plastic Processed: PP, PC, ABS, PET, PVC

Power (kW): 67 kW

Screw L/D Ratio: 22

Screw diameter (mm): 85 mm

Style: Horizontal

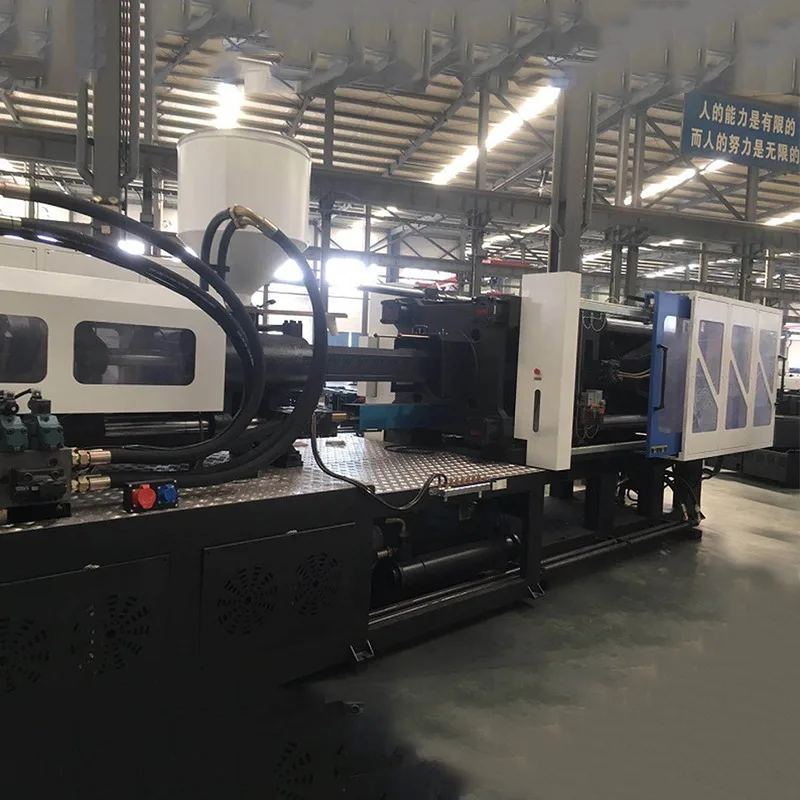

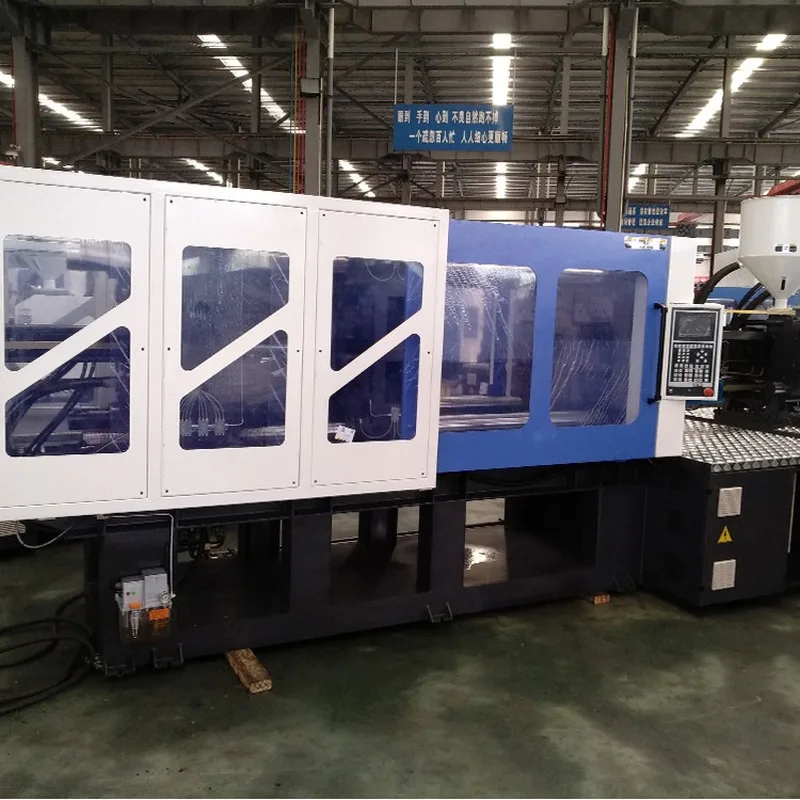

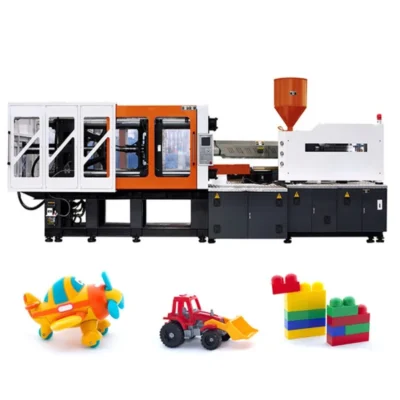

Type: Injection molding machine

Video outgoing-inspection: Provided

Warranty: 1 Year

Warranty of core components: 1 Year

Weight (KG): 20000 kg
