FOXWELL SD203 Car Leak Detector Pipe Vacuum Leak Tester EVAP Smoke Machine Diagnostic Car Smoke Leak Detector

Do You Have Following Problems?

You will be able to Accurately detect the location of the leak, when you encounter the following situation.
-Frequent refilling oil/coolant
-Car dashboard lights up
-Smell something weird
-Engine running too hot

Foxwell SD203 Main Selling Points:
1.   Small size,patented technology, quality and after-sales support
2.    Smoke is environmentally friendly and non-toxic
3.    Built-in control circuit board
4.    Built-in air pump
5.    0.8-1.2bar output
6.   Smoke Mode: the smoke mode can pinpoint exactly where the leak is happening.
7.    Equipped with Liquid Level observation port
8.    Rich accessories
9.   Overheat & Anti-frost Protection
10.  Wide Range of Applications: suitable for detecting pipeline system leaks on cars, motorcycles, snowmobiles, beach bikes, light trucks, heavy-duty trucks, and speedboats. Supports all 12V vehicle batteries.

Support Multi-system Test

EVAP System Test
Intake System Test
Exhaust Systems Test
Crankcase system test
Car Sealing Test
Fuel Tank System Test
Turbo System Test
Various Pipe Fittings Test

Two Working Modes (Smoke Mode & Air Mode):
 When you opt for the air mode, the flow meter helps you swiftly confirm if there’s a leak.  After that, switch to the smoke mode to pinpoint exactly where the leak is happening.  This significantly boosts diagnostic efficiency and prevents the wastage of a large amount of smoke fluid, saving costs.

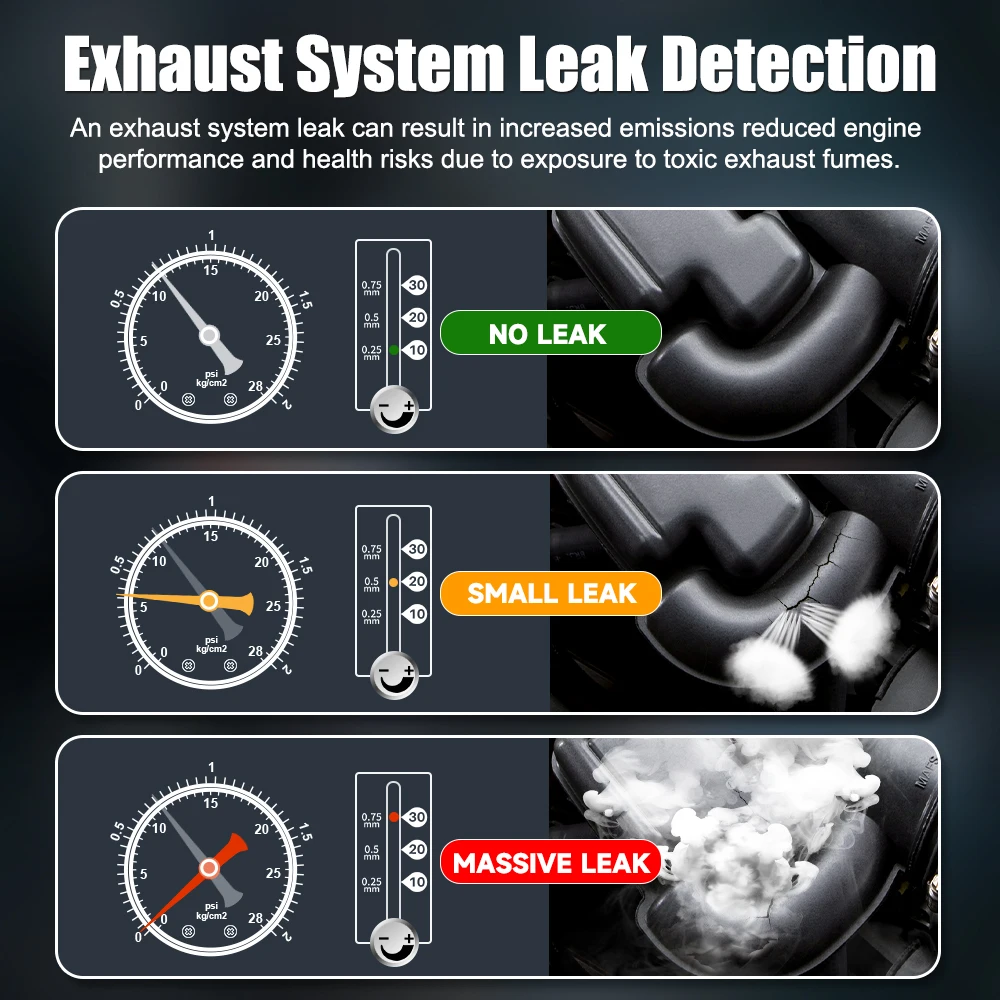

Leak Status Indication
NO Leak: When the value of the pressure gauge remains unchanged and the flow meter will read zero (ball at bottom of scale), it means that there is no leakage in the system.
Small Leak: When the value of the pressure gauge drops and the ball in the flow meter slowly fall to the bottom of the scale, it indicates a small leak in the system.
Massive Leak: When the value of the pressure gauge reaches zero and the flow meter ball never falls to the bottom of the scale, it indicates a large leak in the system.

More Features of SD203

Wide Range of Applications:  suitable for detecting pipeline system leaks on cars, motorcycles, snowmobiles, beach bikes, light trucks, heavy-duty trucks, and speedboats. Supports all 12V vehicle batteries.	Overheat and Antifreeze Protection: The smoke detector is equipped with the latest intelligent protection devices. When the temperature of the equipment exceeds 75 degrees Celsius, the power protection device will intelligently start and shut down to ensure the safety of the operator and equipment. If the device operates continuously for more than 15 minutes, it will be protected from overheating for a protection time greater than 10 minutes. This device is also suitable for low-temperature operation. Only car batteries with a full capacity of 12V are supported.	Built-in Air Pump:  Engineered for ease, SD203 eliminates the need for external gas sources, offering swift setup and immediate functionality.  The built-in pump ensures efficient operation while enhancing portability, allowing you to effortlessly move the smoke tester automotive wherever it’s needed.

How To Use It?

1. Inject 10ml-20ml of test oil into the smoke leak detector, filling 20ML of test fluid, under standard working conditions, can be used continuously for about 10 minutes; (about Smoke Oil: advise use the Baby oil)
2. Open the pipe that needs to be connected with the leak detector.
3. Install the airbag adapter into the sealed pipe and connect the device to the smoke conduit.
4. Connect the leak detector to the DC12V battery and the device will start working. NOTE: red clamp tp positive(+), and black clamp to negative(-)
5. The pipe will be filled with smoke and the leakage point will be checked.
6. Test the leaking pipeline, under the premise of sealing accurately, generally about 1 minute can be filled with smoke, if there is a leak, within 3 minutes, you can observe the results.
