Description
SPECIFICATIONS
Brand Name: NoEnName_Null,Shinma
Condition: New
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Heating source: Electricity
Hign-concerned Chemical: None
Machinery Capacity: evaporation amount 5KG/h
Machinery Function: drying
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Material: Stainless Steel 304/316
Origin: Mainland China
Place of Origin: Jiangsu, China
Showroom Location: None
Type: Power Tool Parts,Drying Equipment
Video outgoing-inspection: Provided
Warranty: 1 Year
Warranty of core components: 1 Year
Weight (KG): 500
Friends, welcome to our store, you can tell me your specific product requirements, if you need other models of this product, please contact me, I will send the product link for your purchase! WhatsApp/WeChat: Aida +86 19083360991 (Reply within 10 minutes) Email: yihua.adam@gmail.com (Reply within 8 hours)
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-3{text-align:center}#detail_decorate_root .magic-4{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-5{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-6{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-7{width:750px}#detail_decorate_root .magic-8{width:300px;display:flex;flex-direction:column;margin-right:4px;margin-left:0}#detail_decorate_root .magic-9{width:446px}#detail_decorate_root .magic-10{overflow:hidden;width:446px;height:530.4426666666667px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-11{margin-top:-38.05866666666667px;margin-left:1.1893333333333334px;width:446px;height:594px}#detail_decorate_root .magic-12{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-13{width:750px;border-collapse:collapse}#detail_decorate_root .magic-14{min-height:28px;padding:5px 10px;width:71px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-15{min-height:28px;padding:5px 10px;width:144px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-16{min-height:28px;padding:5px 10px;width:469px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-17{overflow:hidden;width:750px;height:589.1115926327194px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-18{margin-top:0;margin-left:0;width:750px;height:589.1115926327194px}#detail_decorate_root .magic-19{overflow:hidden;width:373px;height:222.308px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-20{margin-top:0;margin-left:0;width:373px;height:222.308px}#detail_decorate_root .magic-21{overflow:hidden;width:373px;height:222px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-22{overflow:hidden;width:750px;height:463.45975948196116px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-23{margin-top:0;margin-left:0;width:750px;height:463.45975948196116px}#detail_decorate_root .magic-24{overflow:hidden;width:750px;height:742.1976592977893px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-25{margin-top:0;margin-left:0;width:749.9999999999999px;height:742.1976592977893px}#detail_decorate_root .magic-26{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-27{margin-bottom:0}#detail_decorate_root .magic-28{position:relative;width:100%}#detail_decorate_root .magic-29{overflow:hidden;width:750px;height:604.6814044213263px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-30{margin-top:0;margin-left:0;width:749.9999999999999px;height:604.6814044213263px}#detail_decorate_root .magic-31{overflow:hidden;width:750px;height:425.22756827048113px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-32{margin-top:0;margin-left:0;width:749.9999999999999px;height:425.22756827048113px}#detail_decorate_root .magic-33{overflow:hidden;width:750px;height:419.37581274382313px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-34{margin-top:0;margin-left:0;width:749.9999999999999px;height:419.37581274382313px}#detail_decorate_root .magic-35{overflow:hidden;width:750px;height:496.031746031746px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-36{margin-top:0;margin-left:0;width:750px;height:496.031746031746px}#detail_decorate_root .magic-37{overflow:hidden;width:750px;height:499.7368421052632px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-38{margin-top:0;margin-left:0;width:750px;height:499.7368421052632px}
Product Overview

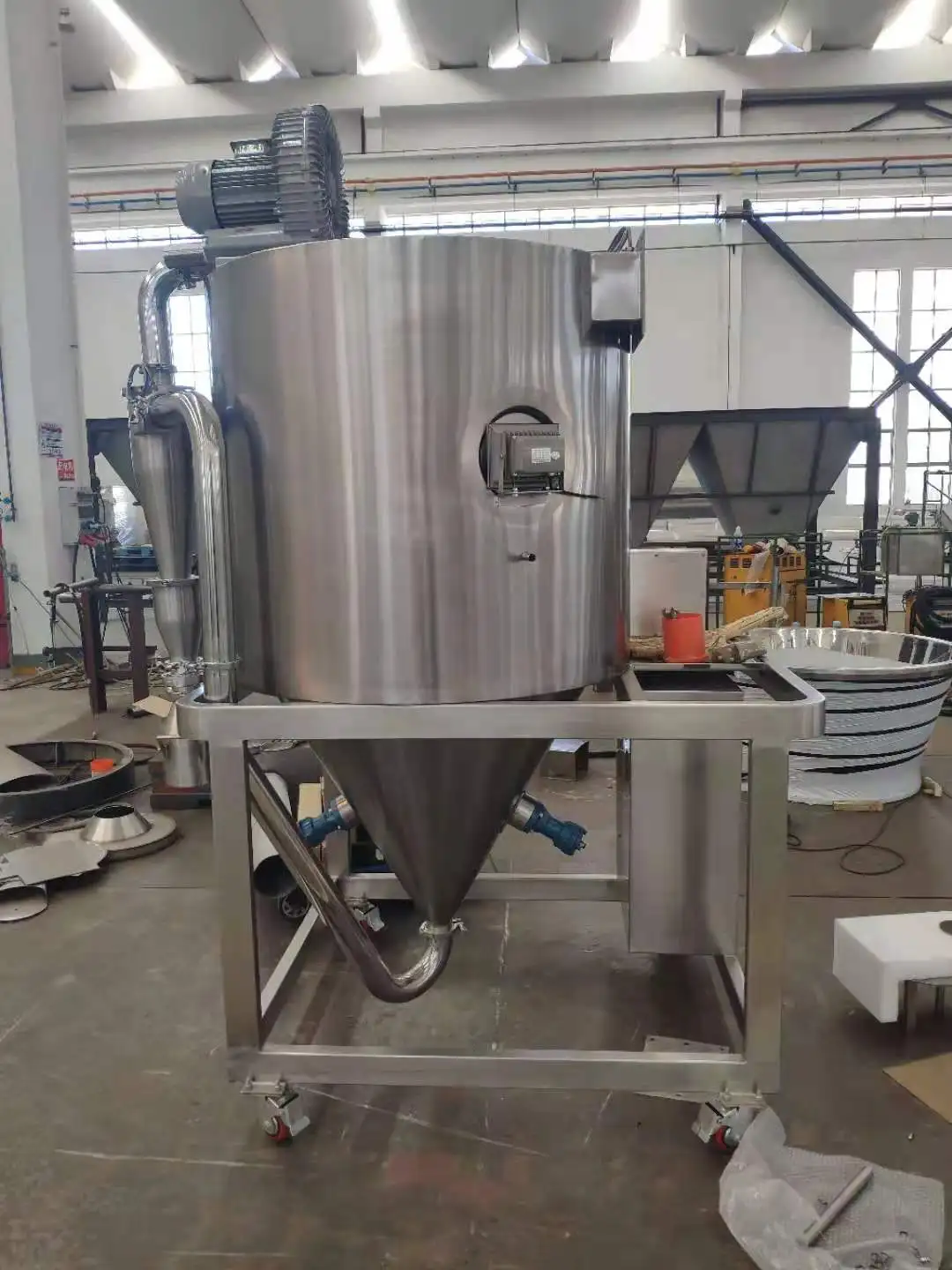

LPG-5 mini milk powder centrifugal spray dryer 5kg lab price drying equipment
The spray drying is the widest used technology in the liquid shaping technology and in the drying industry. It is most suitable for producing powder, particle, or block solid products from materials of solution, emulsion, soliquoid and pumpable paste states. Therefore, when the particle size and distribution of the final products, their residual water contents, the stocking density and the particle shape meet the precision standards, the spray drying is one of the most desired technologies.
FEATURES AT A GLANCE
1, High speed of drying. After the spraying of he material liquid, the surface area of the material will be increased greatly. In the hot-air flow, 95%-98% of water can be evaporated at a moment. The time of completing the drying needs only several seconds. 2, It is especially suitable for drying the heat sensitive materials. It’s final products own the good uniformity, mobility, dissolving capacity. And the final products are high in purity and good in quality.
3.Typical application:
Food: Amino acid, vitamin, egg powder, bone powder, flavouring, protein, milk powder, blood powder, soy sauce powder, coffee, tea powder, glucose, pentadiene carboxylic acid, pectin, flavours, vegetable juice, yeast, starch, etc.
Ceramic Alumina, zirconia, magnesium oxide, titania, pottery clay, china clay, all kinds of magnetic porcelain and metal-oxides,
etc
etc
Chemical: Aluminium polychlorid, disperse dyes, reactive dyes, organic catalyzer, white carbon black, washing powder, zinc sulfate,
silica, sodium metasilicate, potassium fluoride, calcium carbonate, potassium sulfate, ingotganic catalyzer and all kinds of waste
liquid, etc
silica, sodium metasilicate, potassium fluoride, calcium carbonate, potassium sulfate, ingotganic catalyzer and all kinds of waste
liquid, etc
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
|
1
|
moisture evaporation amount
|
5kg/h
|
|
2
|
operation temputure
|
input air≤350℃,output air 80-100℃
|
|
3
|
Tower outer diameter / tower net height
|
1.1m/2.2m
|
|
4
|
Atomizer speed
|
30000r.p.m
|
|
5
|
Atomization type
|
Centrifugal atomization
|
|
6
|
Heating source
|
electricity
|
|
7
|
Product collection method
|
cyclone separator
|
Other model technical parameters
Component system
Sketch of Flow Chart
Why Choose Us
Customer Photos
